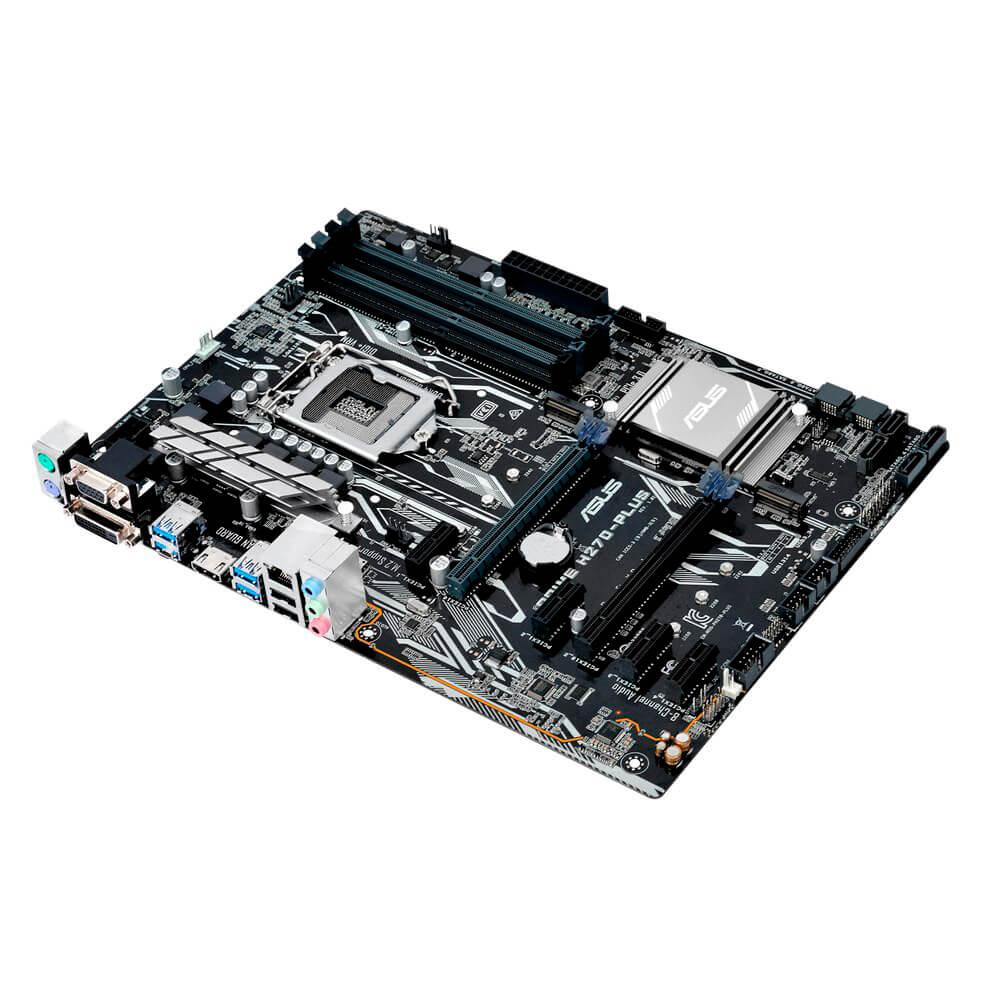

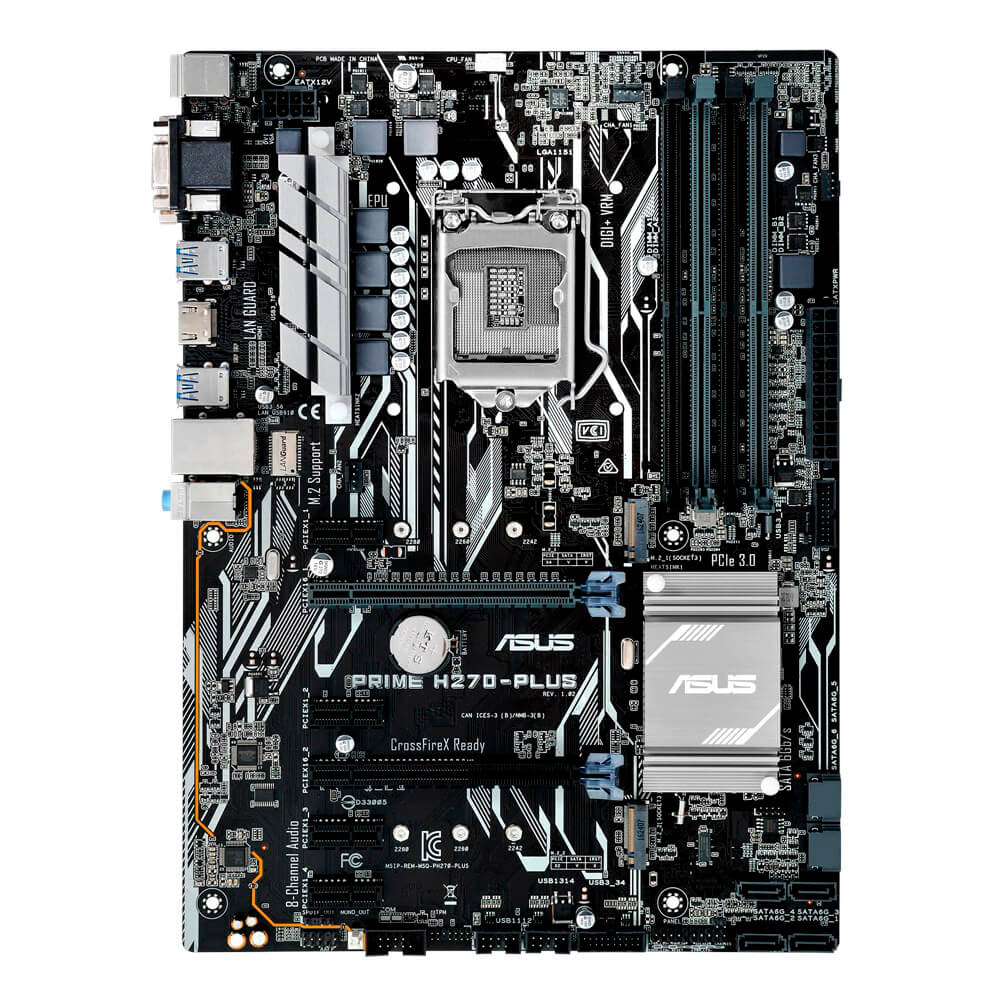

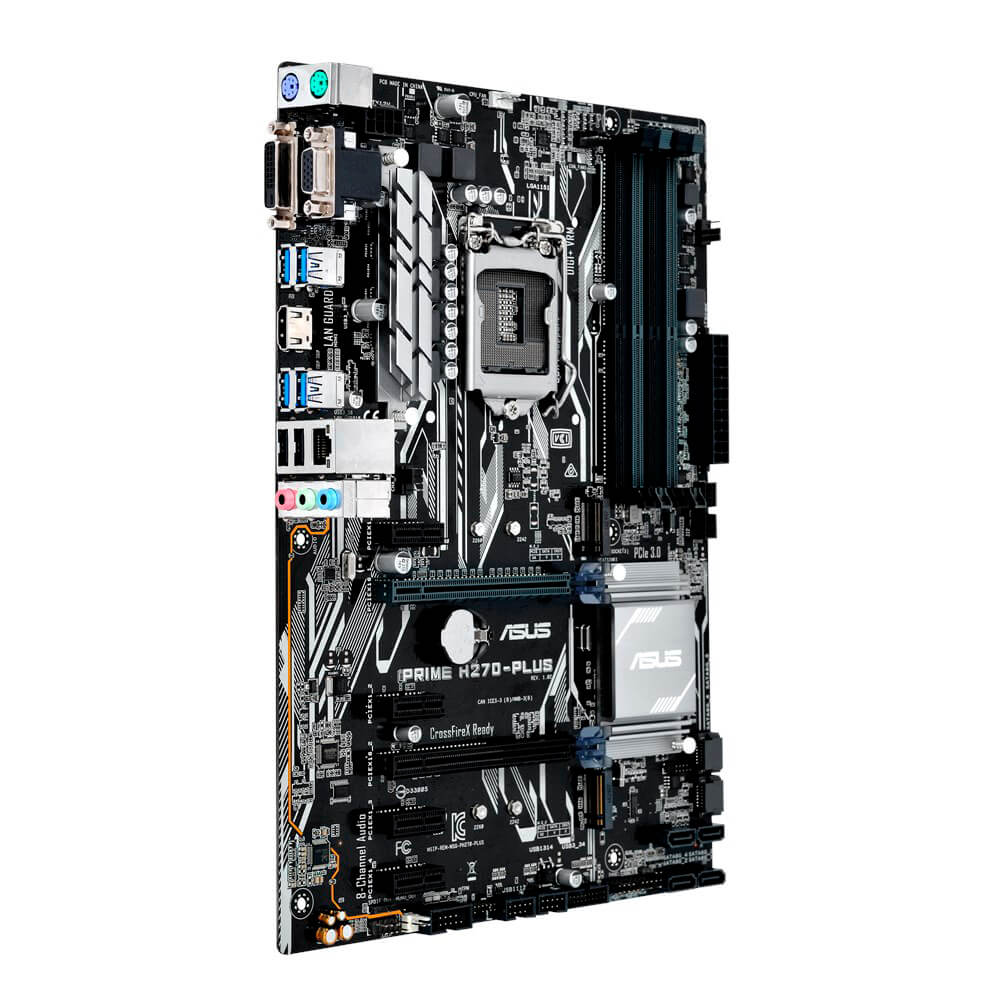

Placa ASUS Prime H270-PLUS Intel1151 4Ddr4 HDMI Pcie3.0
No disponible actualmente
Marca:
Asus - P/N: 90MB0S90-M0EAY0 | REF: QTY90MB0S90-M0EAY0
Envío:
Cantidad:
Disponibilidad:
Opiniones:
Sin opiniones
2 añosde garantía
30 díasde devolución
100%pago seguro
Añadir a la lista de deseos
CPU
Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel H270
Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.
Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
Multi-GPU Support
Supports AMD CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
Storage
1 x M.2 Socket 3*1, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3*2, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready *3
LAN
Realtek RTL8111H
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports
Intel H270 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
Intel H270 Chipset :
6 x USB 2.0 port(s) (2 at back panel, , Type-A, 4 at mid-board)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

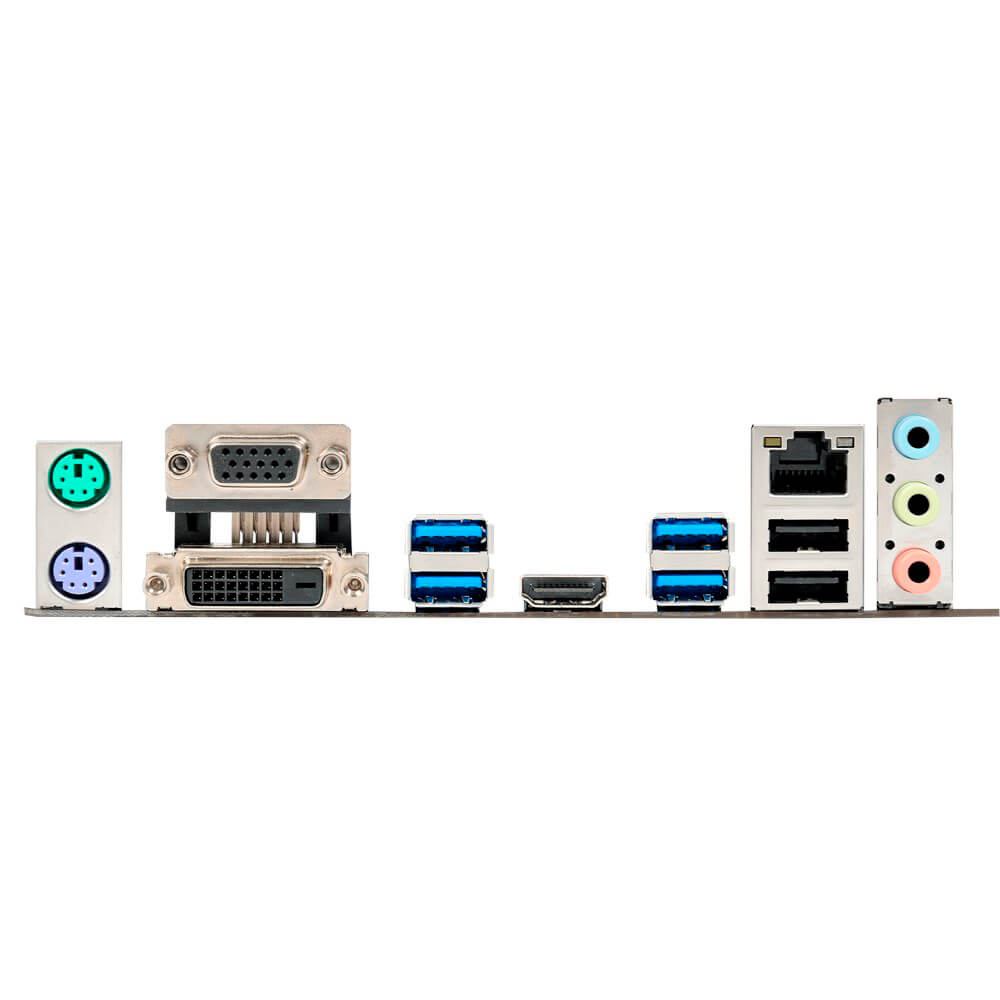

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
1 x TPM header
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Mono Out header

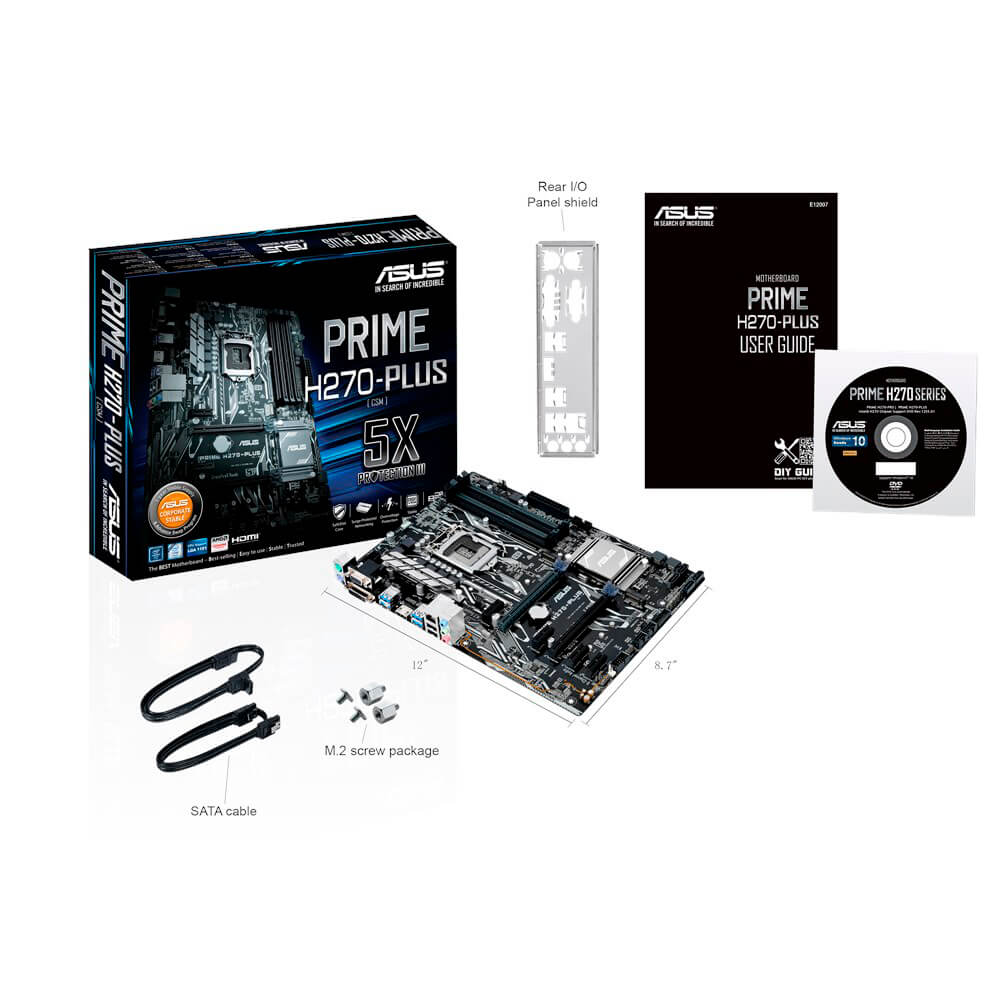

Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x SCD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Operating System
Windows 10 64-bit
Windows 8.1 64-bit
Windows 7 32-bit
Windows 7 64-bit
* Las características del producto, así como su imagen, pueden ser modificadas por el fabricante sin previo aviso.
Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel H270
Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.
Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
Multi-GPU Support
Supports AMD CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
Storage
1 x M.2 Socket 3*1, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3*2, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready *3
LAN
Realtek RTL8111H
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports
Intel H270 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
Intel H270 Chipset :
6 x USB 2.0 port(s) (2 at back panel, , Type-A, 4 at mid-board)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
1 x TPM header
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Mono Out header
Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x SCD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Operating System
Windows 10 64-bit
Windows 8.1 64-bit
Windows 7 32-bit
Windows 7 64-bit
* Las características del producto, así como su imagen, pueden ser modificadas por el fabricante sin previo aviso.
| Socket Intel: | 1151 7ª Generación |
| Chipset INTEL: | H270 |
| Velocidad Memoria: | DDR4 - 2133MHz DDR4 - 2400MHz |
| Factor de Forma: | DIMM |
| Número de Módulos: | 4 |
| Memoria RAM Max. (GB): | 64 |
| Memoria ECC/No-ECC: | No-ECC |
| Conexiones de Video: | 1x VGA (D-Sub) 1x Dual-link DVI-D 1x HDMI |
| Conectores de Vídeo: | D-Sub Dual-Link DVI-D HDMI |
| Conectores Almacenamiento: | 1x M.2 socket 3 - modo SATA y PCIE x4 1x M.2 socket 3 - modo SATA y PCIE x2 6x SATA3 - 6Gbps |
| Conectores Almacenamiento: | M.2 socket 3 SATA3 |
| Conectores SATA3 - 6GB/S: | 6 |
| Conexiones SATA Totales: | 6 |
| Conectores M.2 Slots: | 2 |
| RAID soportado: | Compatible Raid 0 Raid 1 Raid 5 Raid 10 |
| Slots de Expansión: | 1x PCIe 3.0 x16 / bus x16 1x PCIe 3.0 x16 / bus x4 4x PCIe 3.0 x1 |
| Slots PCIe / PCI: | PCIe 3.0 x16 / bus x16 PCIe 3.0 x16 / bus x4 PCIe 3.0 x1 |
| Slots PCIe 3.0 x16 / bus x16: | 1 |
| Slots PCIe 3.0 x16 / bus x4: | 1 |
| Slots PCIe 3.0 x1: | 4 |
| Puertos USB: | 8x USB3.1 6x USB2.0 |
| Tipo Puertos USB: | USB3.1 Tipo-A Frontales USB3.1 Tipo-A Traseros USB2.0 Frontales USB2.0 Traseros |
| Conexiones placa internas USB2.0 para Frontal Caja | 4 |
| Conexiones placa internas USB3.1 para Frontal Caja | 4 |
| Conexiones Externas/Panel Trasero USB2.0: | 2 |
| Conexiones Externas/Panel Trasero USB3.1: | 4 |
| Conexiones E/S Internas: | 2x Conector(es) USB3.1 soporta(n) 4 USB3.1 extra 2x Conector(es) USB2.0 soporta(n) 4 USB2.0 extra 1x M.2 socket 3 - modo SATA y PCIE x4 1x M.2 socket 3 - modo SATA y PCIE x2 6x Conector(es) SATA 6Gb/s 1x Cabezal TPM 1x Cabezal de sa |
| Conectores Internos Comunicaciones: | Conector USB3.1 / Frontal Caja Conector USB2.0 / Frontal Caja Conector Serie/COM Cabezal TPM Cabezal de Salida S/PDIF |
| Conector Placa 12V (ATX12V): | 1x ATX 12V 4/8 pines |
| Conexiones E/S Panel Trasero: | 2x Conectores PS/2 para Teclado (violeta) y Ratón (verde) 1x D-Sub 1x DVI-D 1x HDMI 1x Red (RJ45) - Gigabit 4x USB 3.1 Gen1 Tipo-A 2x USB 2.0 3x Jack(s) de audio |
| Conectores Panel Trasero: | 2x Puertos PS/2 - Teclado y Ratón D-Sub DVI-D HDMI Jack(s) de audio Red (RJ45) USB 2.0 USB 3.1 Tipo-A |
| Multi-GPU AMD Crossfire: | Soporta AMD CrossFire |
| Formato Placa Base: | ATX |
