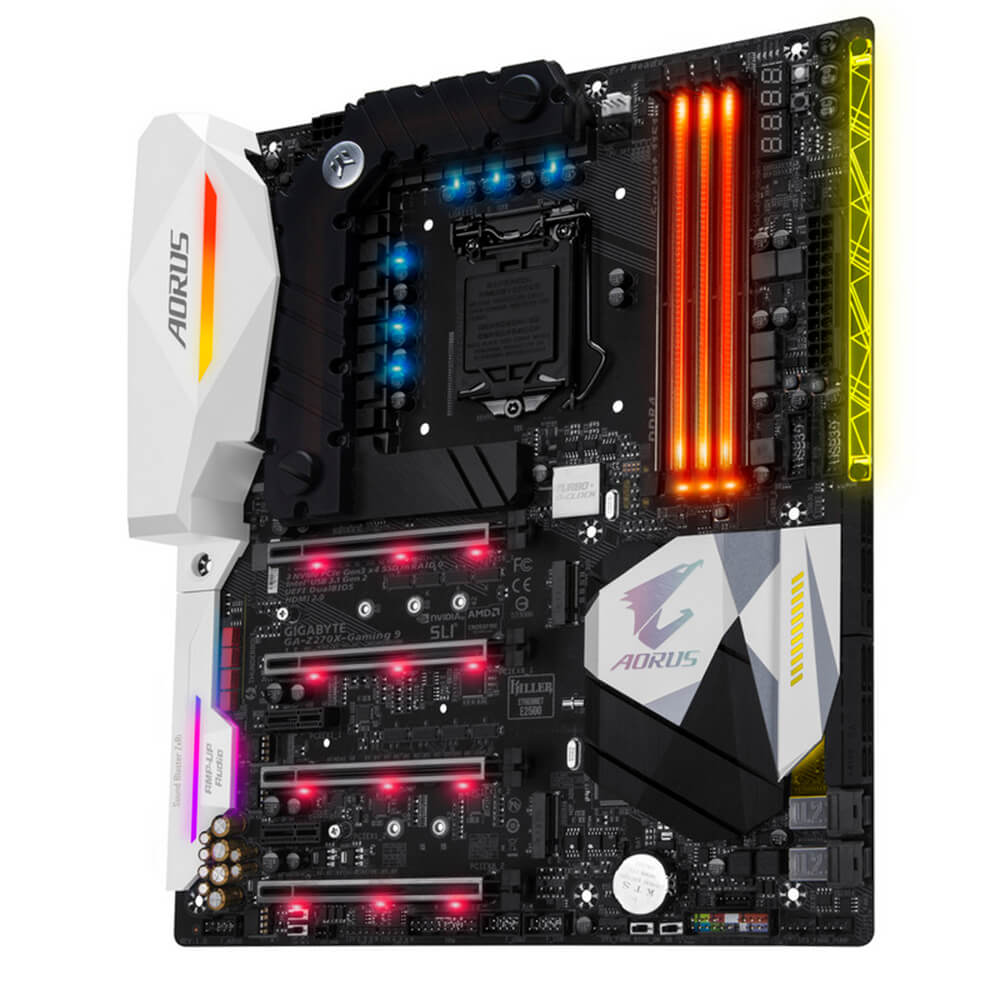

PB Gigabyte 1151 Z270X-Gaming 9 Aorus
No disponible actualmente
Marca:
Gigabyte - P/N: GAZ27GME9-00-GA | REF: QTYA0014067
Envío:
Cantidad:
Disponibilidad:
Opiniones:
Sin opiniones
2 añosde garantía
30 díasde devolución
100%pago seguro
Añadir a la lista de deseos Características
CPU
Support for 7th and 6th generation Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
L3 cache varies with CPU
(Please refer ''CPU Support List'' for more information.)
Chipset
Intel Z270 Express Chipset
Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer ''Memory Support List'' for more information.)
Onboard GraphicsIntegrated Graphics Processor+Intel Thunderbolt 3 Controller:
1 x Intel Thunderbolt 3 connector, supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 4096x2304@60 Hz
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, ''Back Panel Connectors,'' for more information.)
* Support for DisplayPort 1.2 version.
Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
Integrated Graphics Processor+MegaChips MCDP2800 chip:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version. (Requires the latest Intel graphics driver from the GIGABYTE website.)
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Audio
Creative Sound Core 3D chip
2 x JRC NJM2114 and 1 x TI Burr Brown OPA2134 operational amplifiers
Support for Sound Blaster ZxRi
High Definition Audio
2/5.1-channel
Support for S/PDIF Out
LAN
2 x Killer E2500 LAN chips (10/100/1000 Mbit)
Wireless Communication module
Killer Wireless-AC 1535
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Bluetooth 4.1
Support for 11ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
* The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot operates at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Multi-Graphics Technology
Support for NVIDIA Quad-GPU SLI and 4-Way/3-Way/2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFireX and 4-Way/3-Way/2-Way AMD CrossFire technologies
Storage InterfaceChipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
2 x U.2 connectors
3 x SATA Express connectors
6 x SATA 6Gb/s connectors (SATA3 05)
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to ''1-12 Internal Connectors,'' for the installation notices for the U.2, M.2, and SATA connectors.
ASMedia ASM1061 chip:
2 x SATA 6Gb/s connectors (SATA3 6, 7), supporting AHCI mode only
USBChipset+Intel Thunderbolt 3 Controller:
1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset+Realtek USB 3.1 Gen 1 Hub:
4 x USB 3.1 Gen 1 ports available through the internal USB headers
Chipset:
5 x USB 3.1 Gen 1 ports on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x I/O shield audio LED power connector
2 x RGB (RGBW) LED strip extension cable headers
3 x SATA Express connectors
8 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
2 x U.2 connectors
1 x front panel header
1 x front panel audio header
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt add-in card connector
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x power button
1 x reset button
1 x Clear CMOS button
1 x ECO button
1 x OC button
2 x audio gain control switches
2 x BIOS switches
Voltage Measurement Points

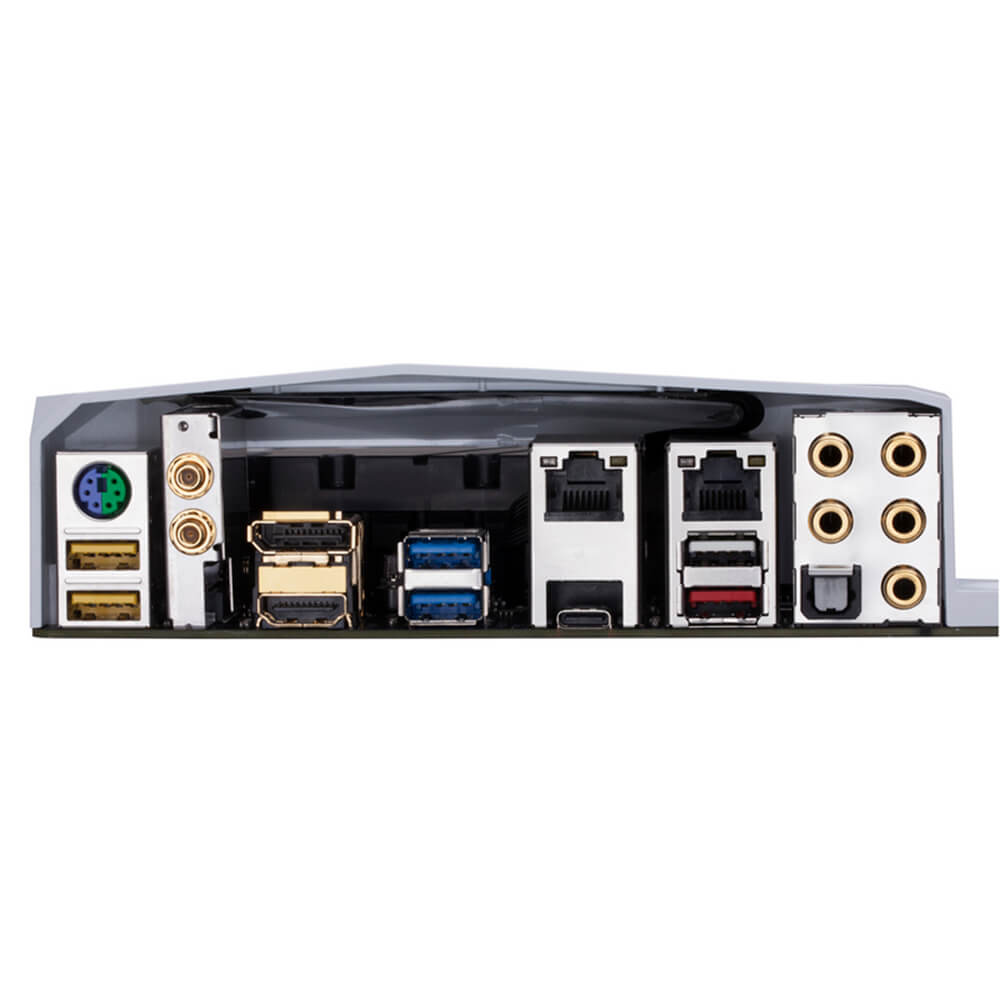

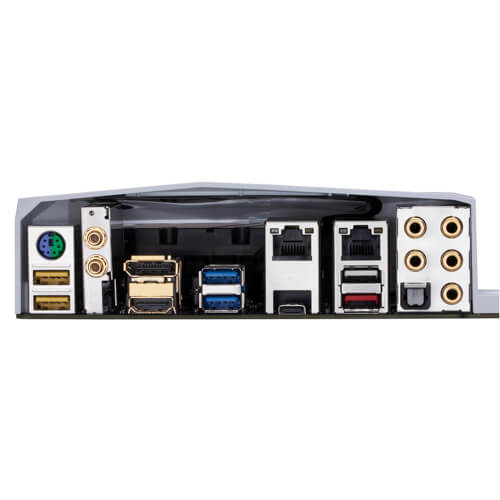

Back Panel Connectors
1 x PS/2 keyboard/mouse port
2 x MMCX antenna connectors (2T2R)
1 x HDMI port
1 x DisplayPort
1 x Thunderbolt 3 connector (USB Type-C port, with USB 3.1 Gen 2 support)
1 x USB 3.1 Gen 2 Type-A port (red)
5 x USB 3.1 Gen 1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
Support for Q-Flash Plus
* The USB flash drive used must be a USB 2.0 flash drive.
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
GIGABYTE HW OC APP
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
Support for 3TB+ Unlock
Support for Q-Flash
Support for Xpress Install
Bundle Software
Norton Internet Security (OEM version)
Intel Optane Memory Ready
Operating System
Support for Windows 10/8.1 64-bit
Support for Windows 7 32-bit/64-bit
* Operating systems supported may vary depending on your processor model.
* Please download the ''Windows USB Installation Tool'' from GIGABYTE?s website and install it before installing Windows 7.
Form Factor
E-ATX Form Factor; 30.5cm x 26.4cm

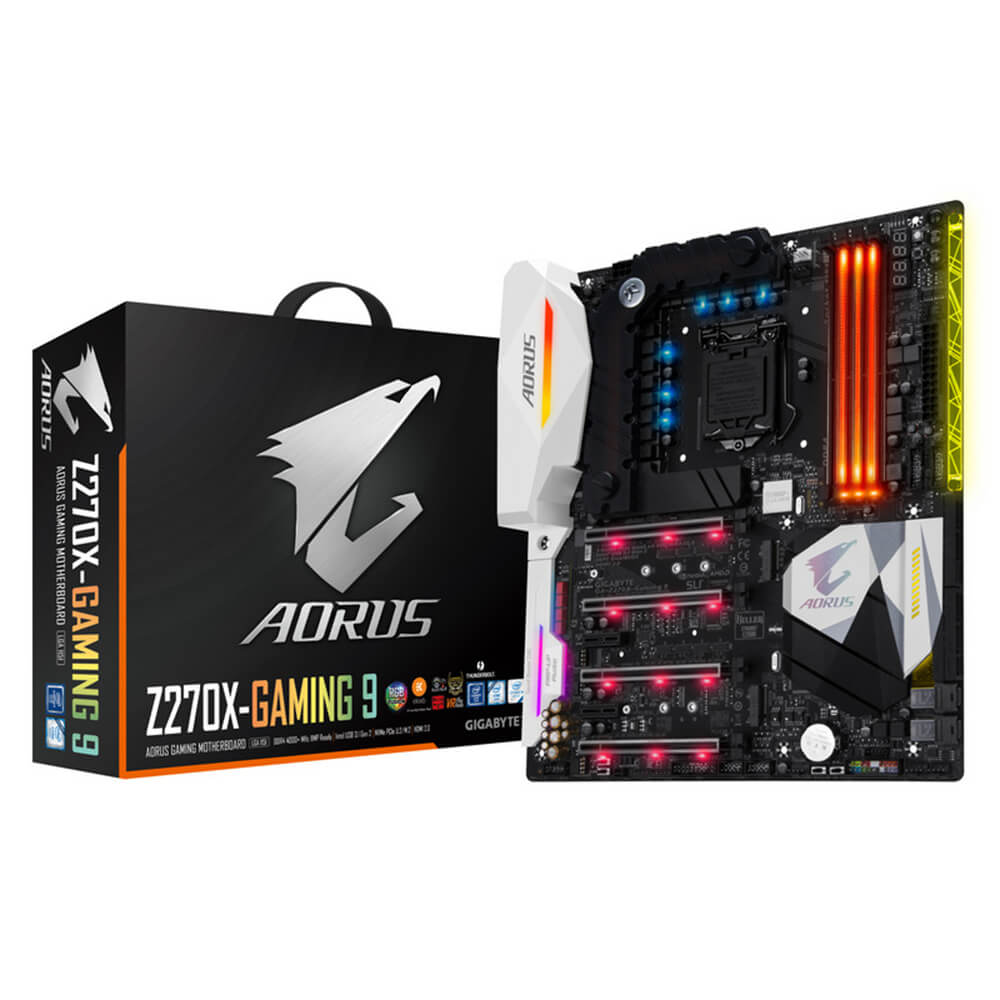

Box Contents
GA-Z270X-Gaming 9 motherboard
Motherboard driver disk
User?s Manual
Quick Installation Guide
Six SATA cables
I/O Shield
One Wi-Fi antenna
One Wi-Fi antenna retention cover
One GC-SLI23P SLI bridge connector
One 3-Way SLI bridge connector
One 4-Way SLI bridge connector
One 2-Way CrossFire bridge connector
Two RGB (RGBW) LED strip extension cables
One Accent Lighting LED Strip
Two thermistor cables
One G Connector
Two Velcro Cable Ties
One pack of back I/O dust covers
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors? website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
